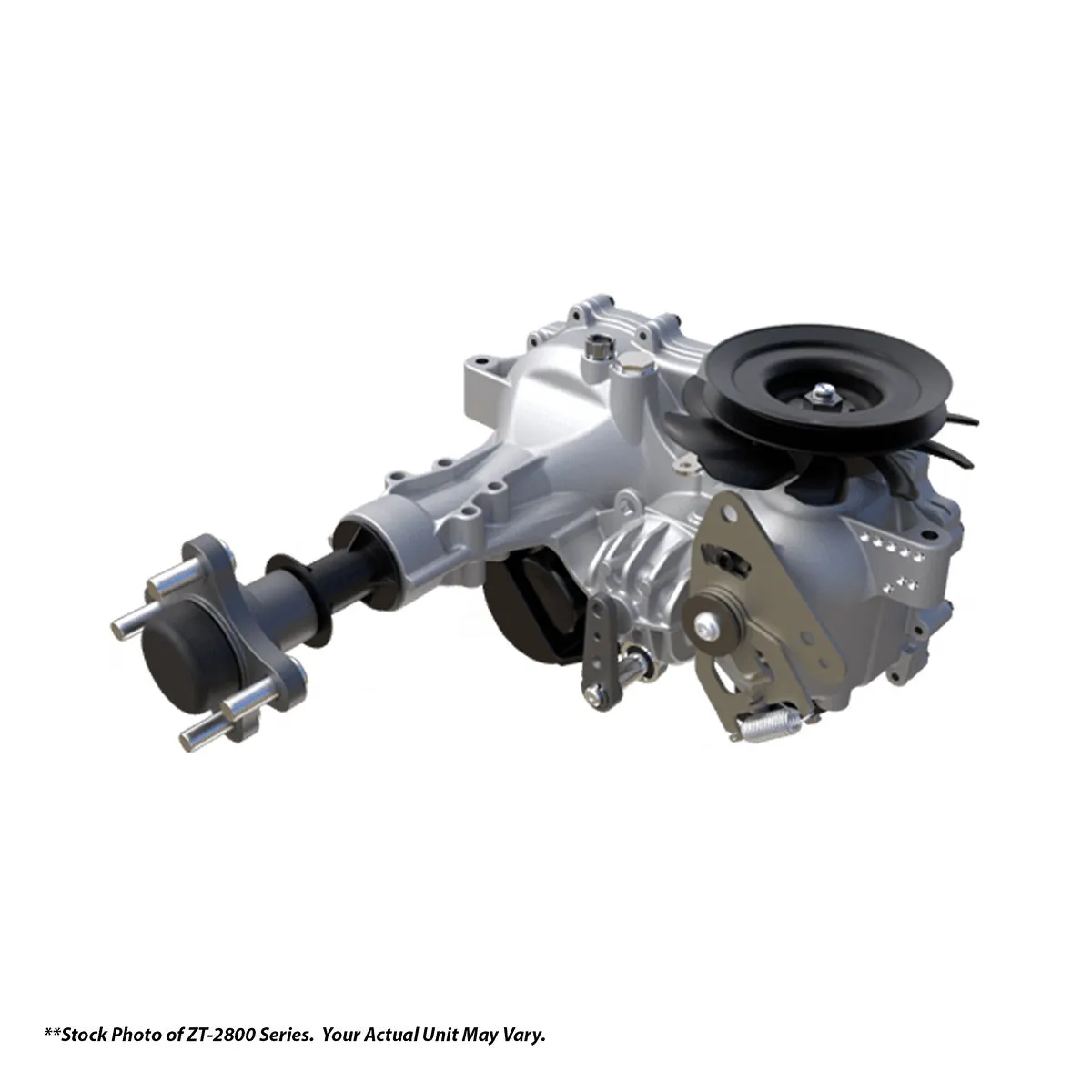

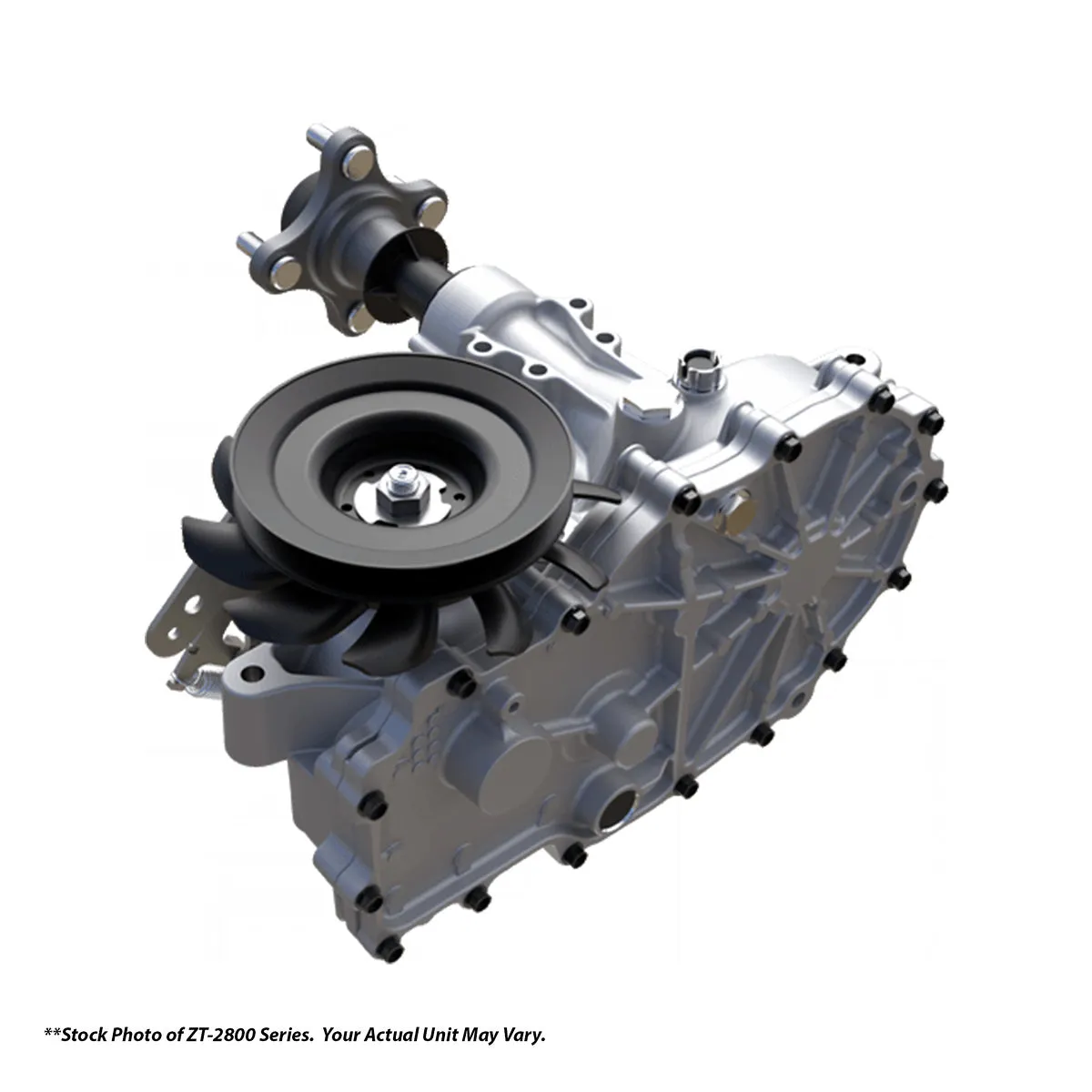

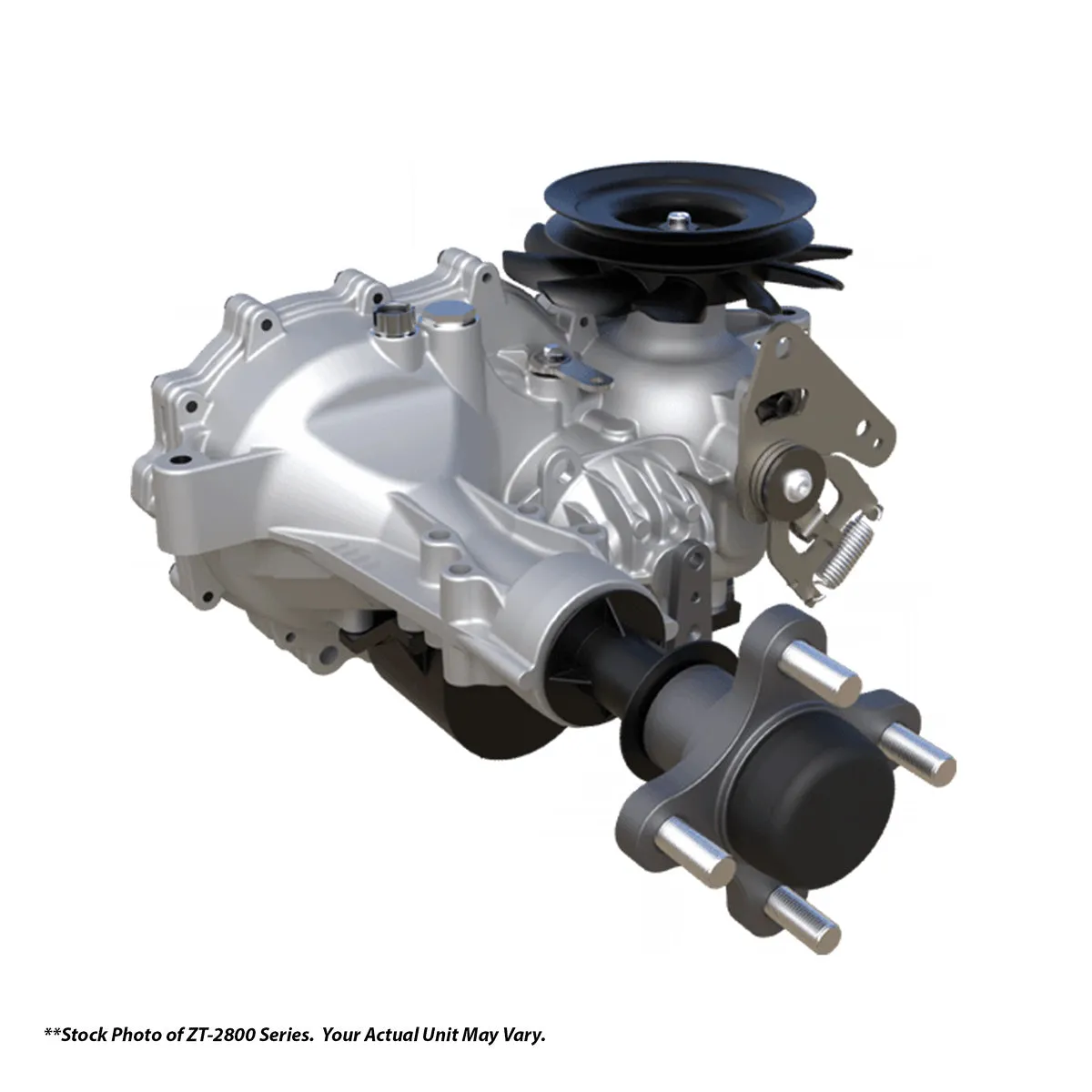

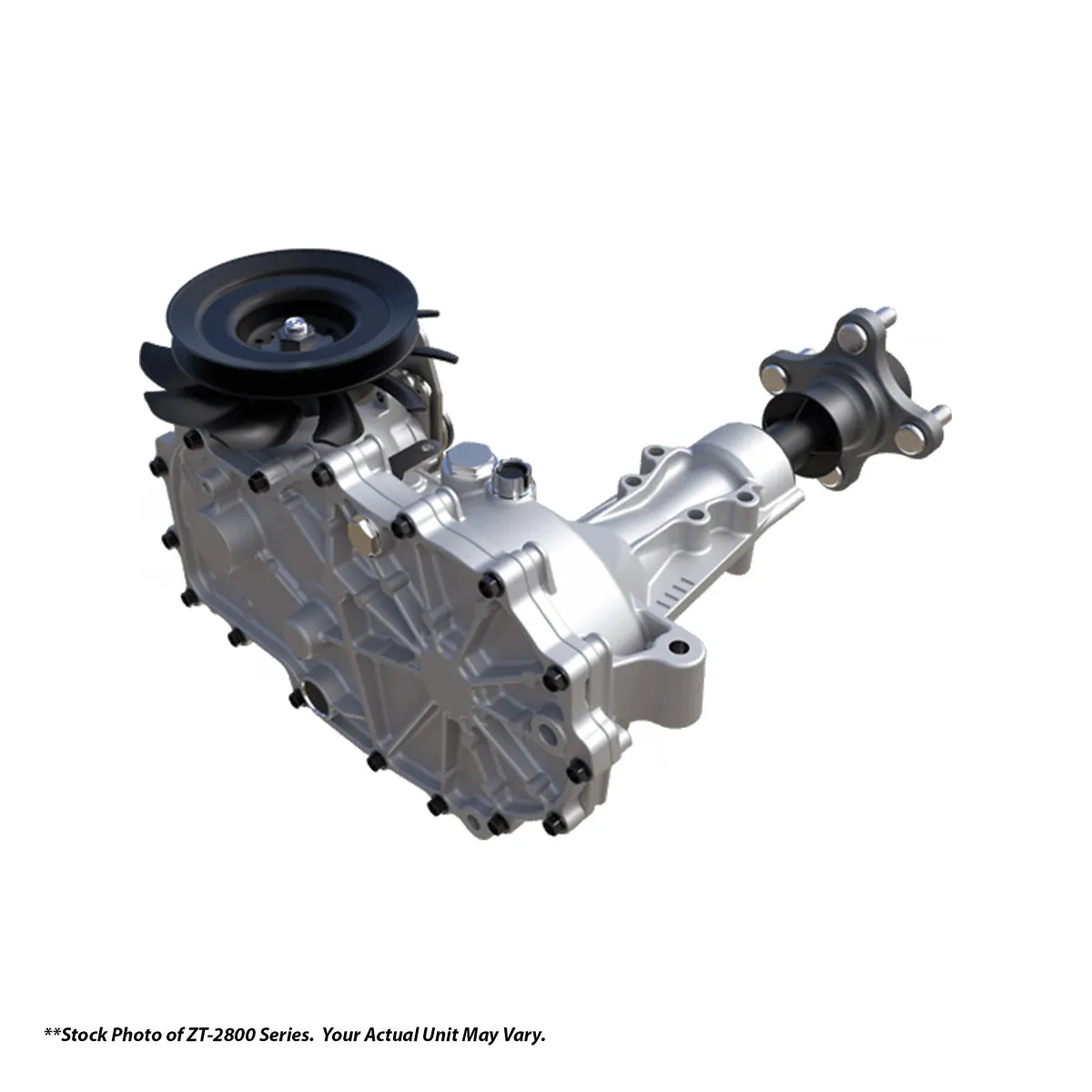

ZT-2800^®

THE ESTATE-GRADE TRANSAXLE.

It’s the largest and most rugged residential transaxle we make, tackle the toughest properties with a high-efficiency 16cc motor and 10cc pump, and a standard debris-free internal brake. The efficient, serviceable design means longer life. For even greater performance, add the optional shock valves and charge pump.

• Our most rugged residential transaxle for machines up to 1000lbs
• Optional shock valves and charge pump for greater performance
• External oil filter for easy maintenance
• Optional internal expansion tank for easier installation
• Serviceable design for longer life
• Debris-free internal brake or external friction brake option

SPECIFICATIONS

TRANSMISSION MODEL

ZH/ZJ

ZK/ZL

ZM

OVERALL TRANSAXLE REDUCTION

TRANSMISSION MODEL

• ZH/ZJ - 20.69:1
• ZK/ZL - 24.74:1
• ZM - 27.23:1

PUMP DISPLACEMENT

• 61 in3 /rev [10 cc/rev]

MOTOR DISPLACEMENT

• 97 in3 /rev [16 cc/rev]

INPUT SPEEDS

• MAX HI-IDLE (NO LOAD) - 3000 rpm
• MIN (LOADED) - 1800 rpm

OUTPUT TORQUE

• up to 300 lb-ft [up to 406 Nm]

SPEED

• up to 8 mph [up to 12 kph]

GROSS VEHICLE WEIGHT

• up to 1000 lbs [up to 453 kg]

AXLE SHAFT DIAMETER

• in [25.4 mm]

AXLE SHAFT END OPTIONS

• Tapered
• 4-bolt Flange
• 5-bolt Flange

WEIGHT OF UNIT

• 32 lbs [14.5 kg]
